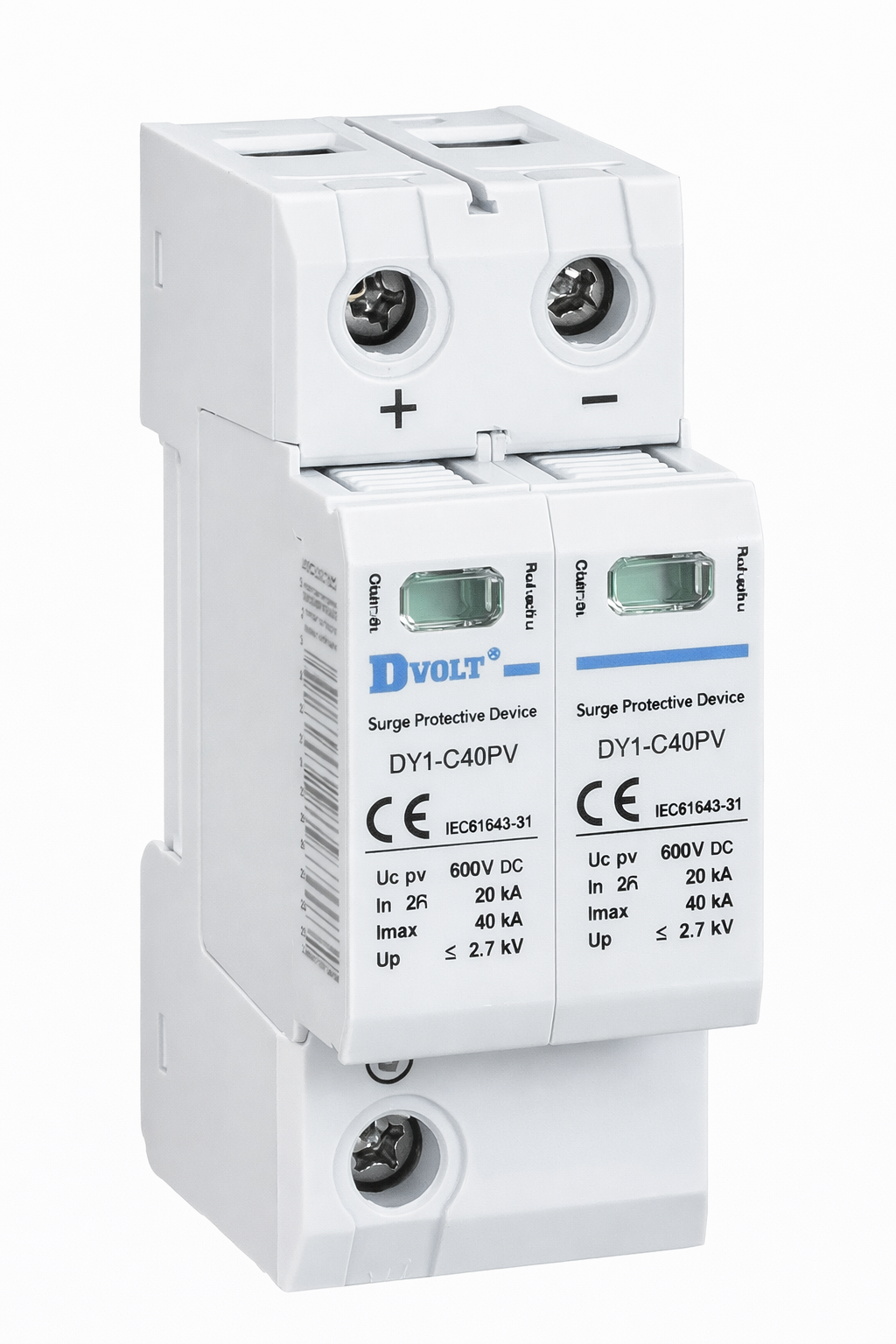

The DV1-C40PV /2(S) 600V Pluggable DC SPD is designed to provide reliable surge protection for photovoltaic and DC distribution systems. Installed in sub-distribution boards, it protects equipment against transient overvoltage through L-PE and N-PE protection modes.
Rated at In 20kA (8/20μs) and built with high-energy MOV technology, it ensures stable performance and enhanced system safety. The pluggable design allows quick replacement and simplified maintenance.
Compliant with IEC 61643-11 and EN 61643-11 standards, this Class II / Type 2 SPD is ideal for solar power plants, renewable energy systems, and industrial DC installations requiring dependable surge protection for global projects.
Location of use: Sub-distribution boards
Mode of protection: L-PE, N-PE
Surge ratings: In= 20 kA (8/20 ? s)
IEC/EN/UL category: Class II/ Type 2 / Type 1CA
Protective elements: High energy MOV
Housing: Plugable design
Compliance: IEC 61643-11:2011
EN 61643-11:2012
