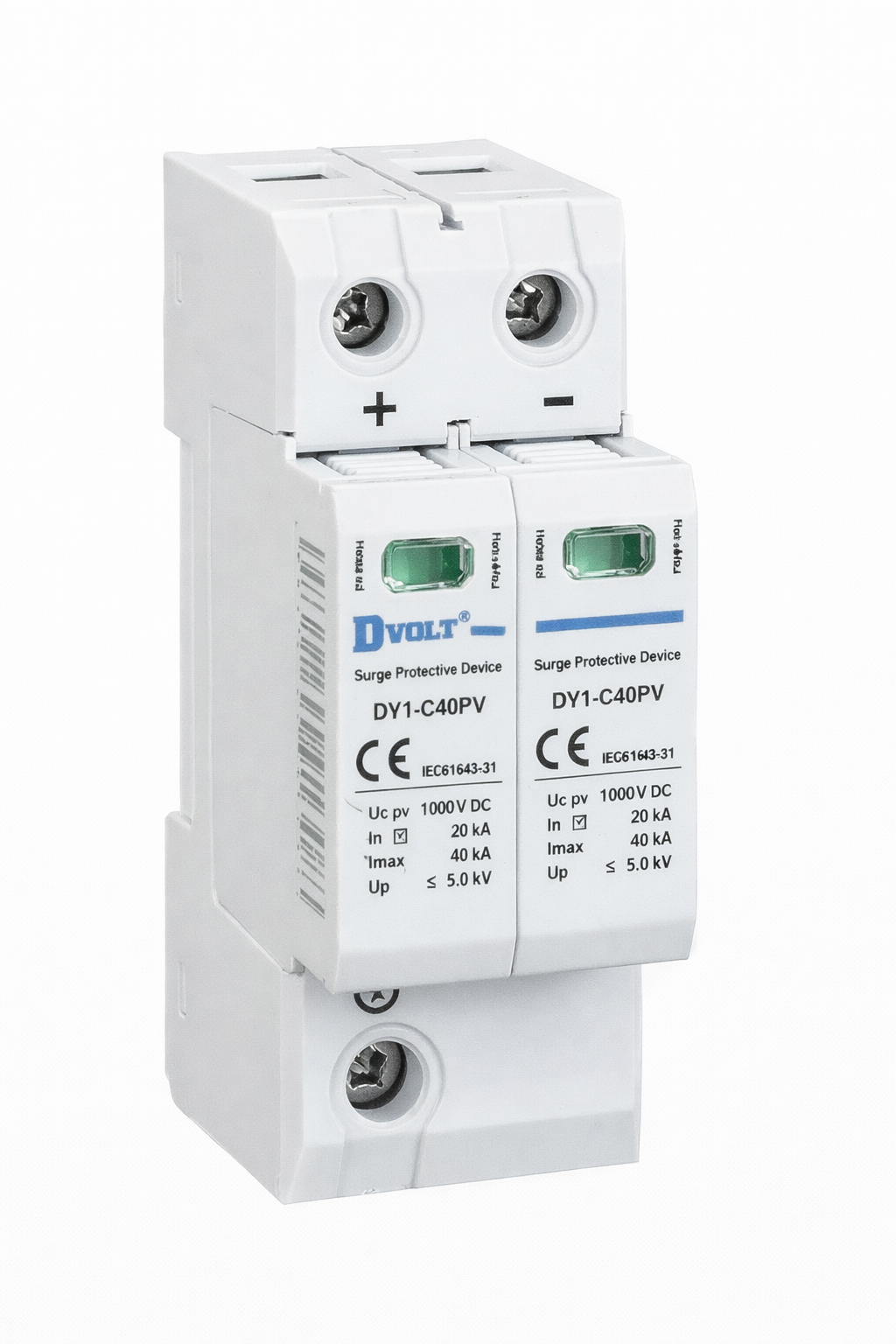

The DV1-C40PV /3(S) 1000V (D4) Pluggable DC SPD is designed for high-performance surge protection in photovoltaic and DC power distribution systems. Installed in sub-distribution boards, it provides reliable protection in (DC+)–PE and (DC–)–PE modes, safeguarding critical equipment from transient overvoltage.
With a nominal discharge current of 20kA (8/20μs) and high-energy MOV technology, it ensures stable, long-term performance in demanding solar environments. The pluggable D4 module design enables fast replacement and simplified maintenance.
Compliant with IEC 61643-31 and EN 50539-11 standards (Class I+II / Type 1+2), it is ideal for utility-scale solar plants and industrial DC installations worldwide.
Location of use: Sub-distribution boards
Mode of protection: (DC+)-PE, (DC-)-PE
Surge ratings: In= 20 kA (8/20 ? s)
IEC/EN/UL category: Class 1+11 / Type 1+2
Protective elements: High energy MOV
Housing: Plugable design
Compliance: IEC 61643-31:2018
EN 50539-11:2013+A1:2014
