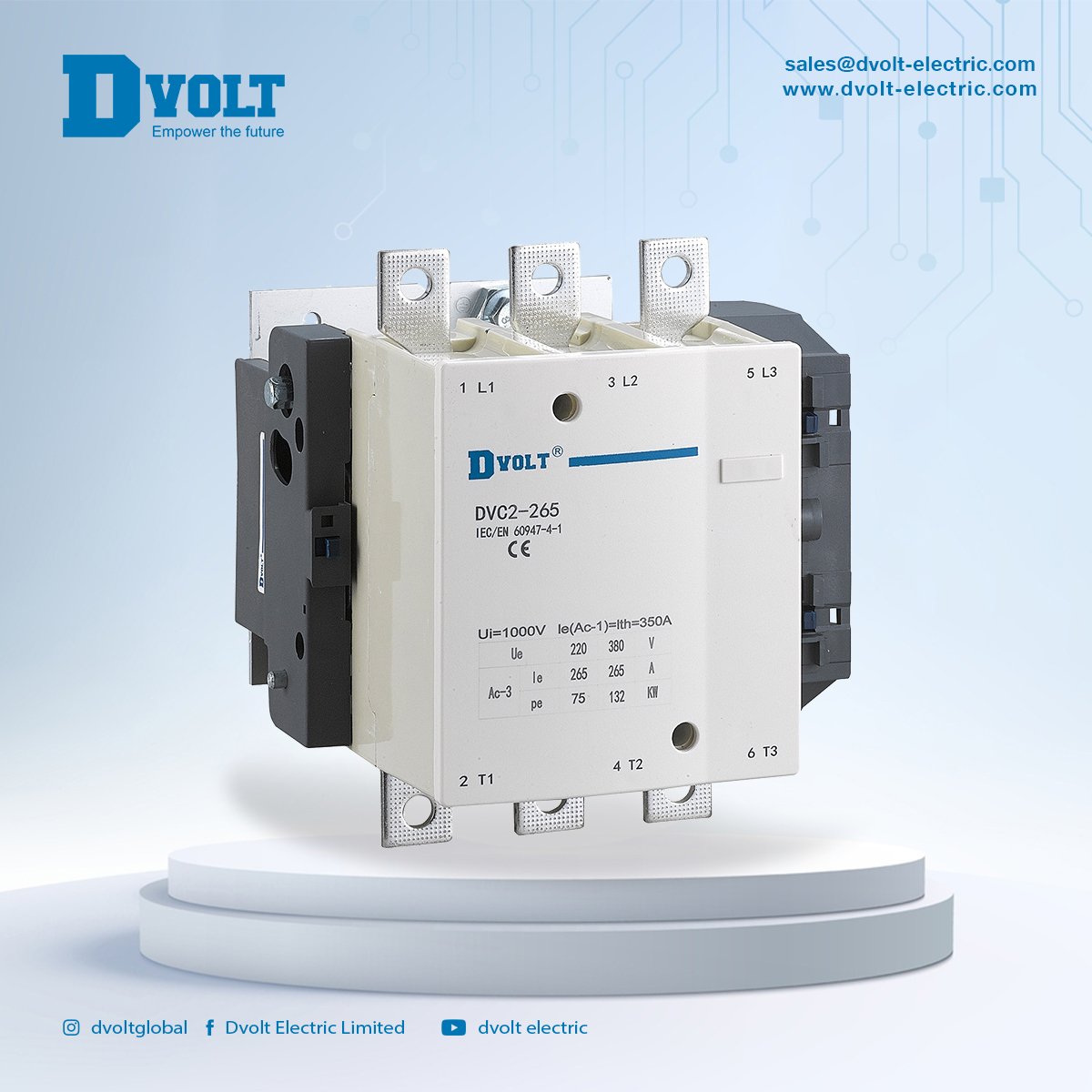

Description

1.1 Certificates: DVC2-115-630
CE, VDE, UK SEPRO, GOST, RCC, UL,
1.2 Electric ratings: AC50/60Hz, up to 690V, up to 800A;
1.3 Application: remote making & breaking circuits, protect circuit from overload when assembling with thermal over-load relay,
1.4 Ambient temperature: -5℃-+40℃;
1.5 Altitude: ≤2000m;
1.6 Mounting category: III
1.7 Mounting conditions:
inclination between the mounting plane and the vertical plane not exceed±5°
1.8 Standard: IEC/EN 60947-4-1
